Having recently worked on quite a few customers and dealing with developments around commodity code I have compiled some notes comparing commodity code handling in ECC vs S/4HANA.
Commodity Code Master Table
| ECC | S/4HANA |
|---|---|
| T604 | /SAPSLL/CLSNR |
Maintenance
ECC

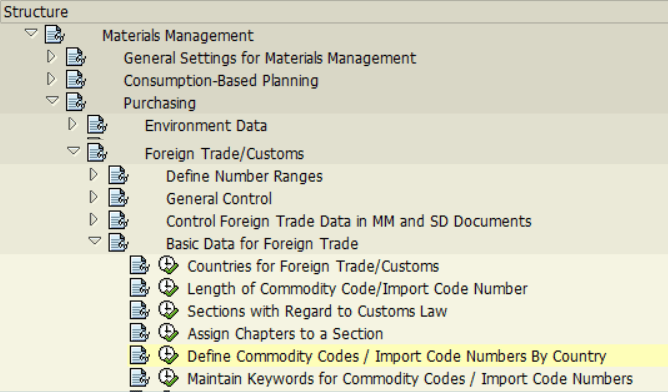

Customising Activity – SPRO at path Materials Management->Purchasing->Foriegn Trade/Customs->Basic Data for Foreign Trade->Define Commodity Codes / Import Code Numbers By Country
SM30 View – V_T604
S/4HANA

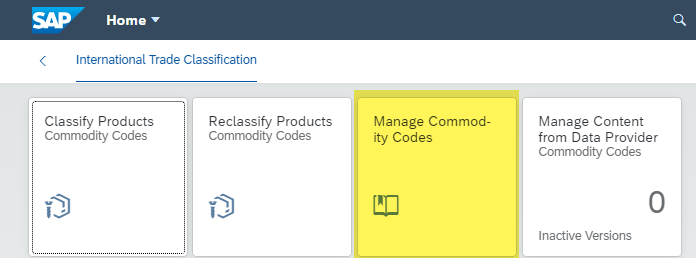

No Longer Customising data, maintained in the system using App Manage Commodity Codes. Commodity codes are defined under Scheme.
Material Assignment Table
| ECC | S/4HANA |
|---|---|
| Commodity code is assigned to Material at Plant level and stored in table MARC field STAWN. | Commodity code is assigned to Material with start and end date, stored in table /SAPSLL/MARITC. Note assignment is not at the Plant level. |

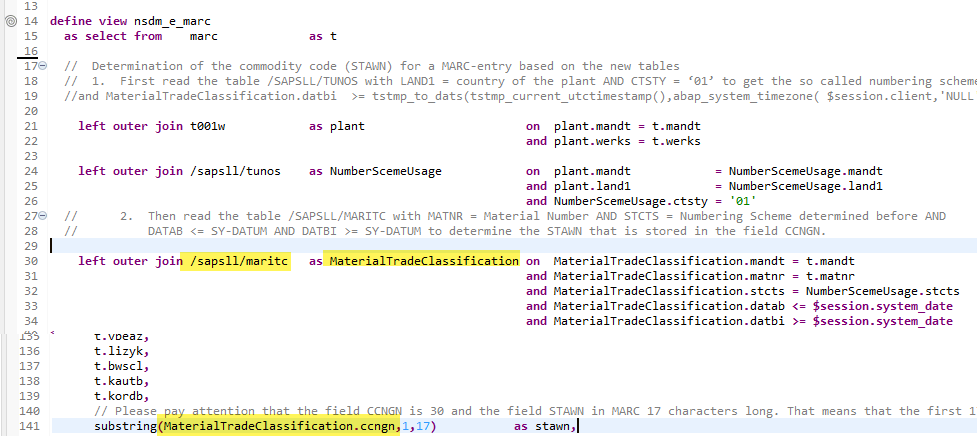

For compatibility reason, in S/4HANA system MARC still has field STAWN but in replacement CDS object NSDM_E_MARC value is derived from the table /SAPSLL/MARITC. Same value will appear for materials in different plant, also you will see Commodity code value valid on system date via MARC object.
Application used for Assignment
| ECC | S/4HANA |
|---|---|

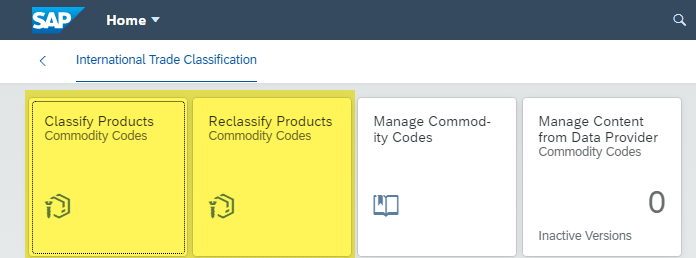

| Transaction MM01 and MM02 | App – Classify Products and Reclassify Products Classify Products shows a list of material which does not have commodity code assigned to them. Once you have assigned commodity code to the material using Classify Production app use app Reclassify Products to change code assignment. |
Update Commodity Code of a Material
| ECC | S/4HANA |
|---|---|
| Using BAPI_MATERIAL_SAVEDATA | Class /SAPSLL/CL_PRCLS_API |
ECC Code
parameters : p_matnr type mara-matnr obligatory,
p_werks type marc-werks obligatory,
p_comm type marc-stawn obligatory.
start-of-selection .
data : ls_headdata type bapimathead,
ls_plantdata type bapi_marc,
ls_plantdatax type bapi_marcx,
ls_return type bapiret2.
ls_headdata-material = p_matnr .
ls_plantdata-plant = p_werks .
ls_plantdatax-plant = p_werks .
ls_plantdata-comm_code = p_comm .
ls_plantdatax-comm_code = abap_true.
call function 'BAPI_MATERIAL_SAVEDATA'
exporting
headdata = ls_headdata
plantdata = ls_plantdata
plantdatax = ls_plantdatax
importing
return = ls_return.
write ls_return-message .
S/4 HANA Code
parameters : p_matnr type mara-matnr obligatory,
p_stcts type /sapsll/clsnr-nosct obligatory,
p_ccngn type /sapsll/clsnr-ccngn
matchcode object /sapsll/shlp_commodity_code obligatory,
p_datab type /sapsll/clsnr-datab default sy-datum,
p_datbi type /sapsll/clsnr-datbi default '99991231'.
start-of-selection .
data(lo_product_api) = new /sapsll/cl_prcls_api( ) .
lo_product_api->create_classification(
exporting
iv_stcts = p_stcts
iv_ccngn = p_ccngn
iv_datab = p_datab
iv_datbi = p_datbi
it_products = value /sapsll/matnr_t( ( p_matnr ) )
iv_no_commit = abap_false
importing
et_messages = data(lt_message) ).
loop at lt_message assigning field-symbol(<lfs_message>) .
write : <lfs_message>-message .
endloop .
